Corometrics 250键盘和带弹性体的卷板
| 2025177-073 | |
| 2025177-023 | |
| 全新 | |
| 母婴产品 | |
| Corometrics 250CX | |
| GE医疗 | |
| GE HealthCare | 不需归还 |
加入愿望清单
登录并添加到购物车
Please select date
Second Opinion Approval Needed
Enter your approval number and submit to add item(s) to cart.
Approval Number
Please enter approval number
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.
Second Opinion Approval Needed
Select your approver's name and submit to add item(s) to your cart
Approver Name
Please Select Approver Name
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.
备件描述

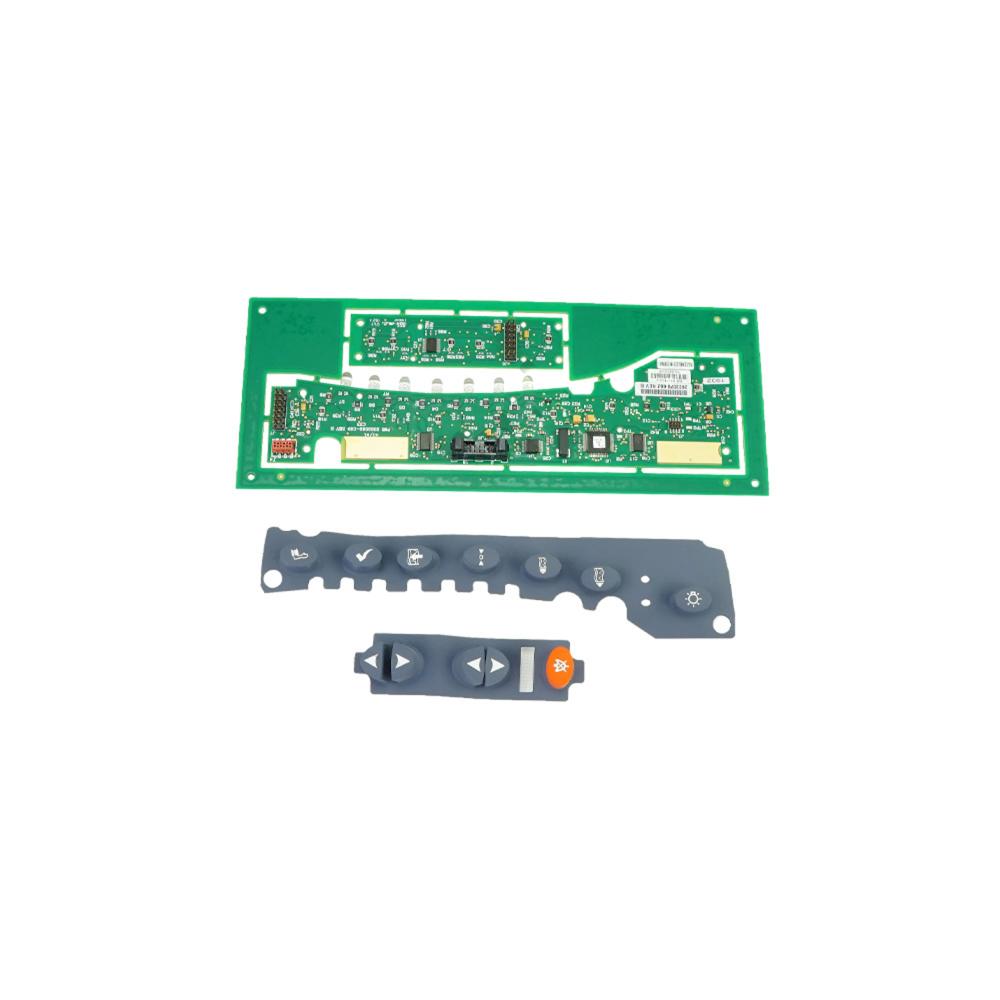

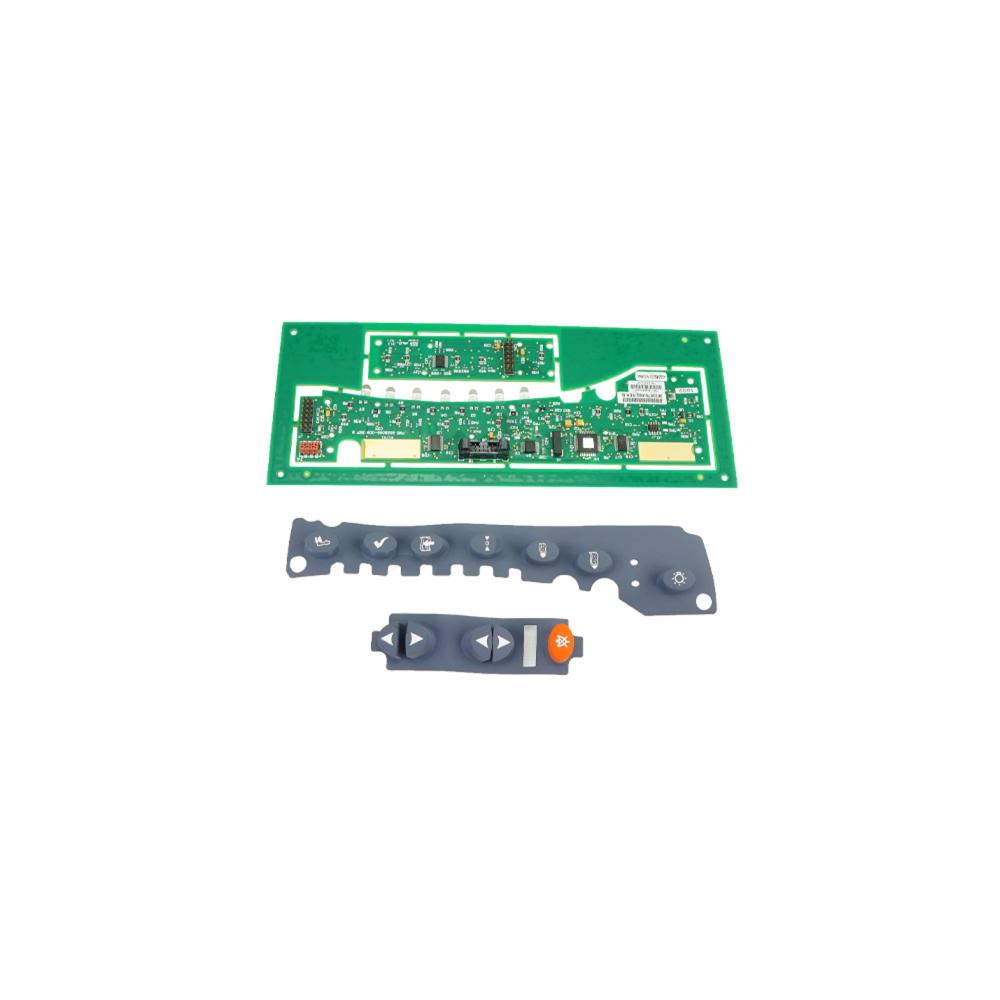

The Corometrics 250 Keypad and Volume Pad with Elastomer is a field service kit that is a specially designed and intended for use in Corometrics™ 250 series monitor and other medical equipment as applicable. The service kit is comprised of a main user interface Printed Wiring Assembly (PWA), user interface main keypad, side keypad, product identification label and packing label. The part can be used as a Field Replaceable Unit (FRU) during servicing and maintenance. The main keypad is engraved with names NIBP start/stop button, test button, mark (offset), Uterine Activity (UA) reference button, paper advance button, record button, power indicator, record indicator and light button. The volume/alarm keypad is engraved with names FHR2 volume decrease button, FHR2 volume increase button, FHR1 volume decrease button, Fetal Heart Rate (FHR1) volume increase button and alarm silence button. The main user interface board is the central processing unit for the monitor unit. The volume/alarm keypad board has an elastomeric property and has backlight LEDs for each keypad of the front panel. The user-interface keypad board interface with the main board is through an RS-232 interface. The keypad is made of high quality clear silicone rubber material that has high tensile strength, good tear resistance and excellent chemical resistant properties, which makes it well suited for modern medical applications and demanding applications. The service parts are securely packed inside a high quality corrugated box and are supported by bubble wrap and antistatic bags to avoid physical damage during transit. The part is RoHS compliant and is approved for today’s safety standards.
适配的产品
Corometrics 250 Series
Corometrics 250cx Series
Corometrics 256
Corometrics 259
替代零备件:
我们为您提供了以下替换零备件。这些是兼容的替换零备件。没有超链接仅供参考且不可在线购买。如果您需要了解更多的信息，请联系客服人员。
| 替代零备件 | 备件详情 |
|---|---|
| 2025177-023 | FRU,CORO 250,KEYPAD&VOL PAD W/ELASTOMER |
